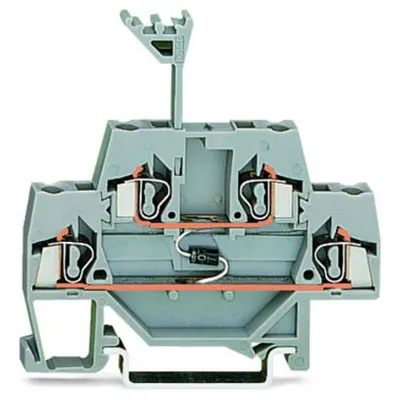

Component terminal block; double-deck; with diode 1N4007; Anode, bottom; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; gray

Tesiune nominala: 250; V Reverse voltage: 1.000; V Ratings per: IEC/EN 60947-7-1; Curent nominal: 0,5; A Tehnologie conexiune: CAGE CLAMP®; Tip actionare: Operating tool; Connectable conductor materials: Copper; Aluminum; Solid conductor: 0,08 … 2,5 mm² / 28 … 14 AWG; Fine-stranded conductor: 0,08 … 2,5 mm² / 28 … 14 AWG; Strip length: 8 … 9 mm / 0.31 … 0.35 inch; Numar total de conexiuni: 4; Total number of potentials: 2; Numar nivele: 2; Wiring type: Front-entry wiring; Latime: 5 mm / 0.197 inch; Inaltime from upper-edge of DIN-rail: 58,5 mm / 2.303 inch; Adancime: 64 mm / 2.52 inch; Design: horizontal type; Tip montaj: DIN-35 rail; Marking level: Center marking; Culoare: gray; Material izolator: Polyamide 66 (PA 66); Fire load: 0,173; MJ Greutate: 10,3; g Product Group: 1 (Rail Mounted Terminal Blocks); Tip ambalare: BOX; Tara de origine: DE; GTIN: 4045454196592; Customs tariff number: 85369010000;
